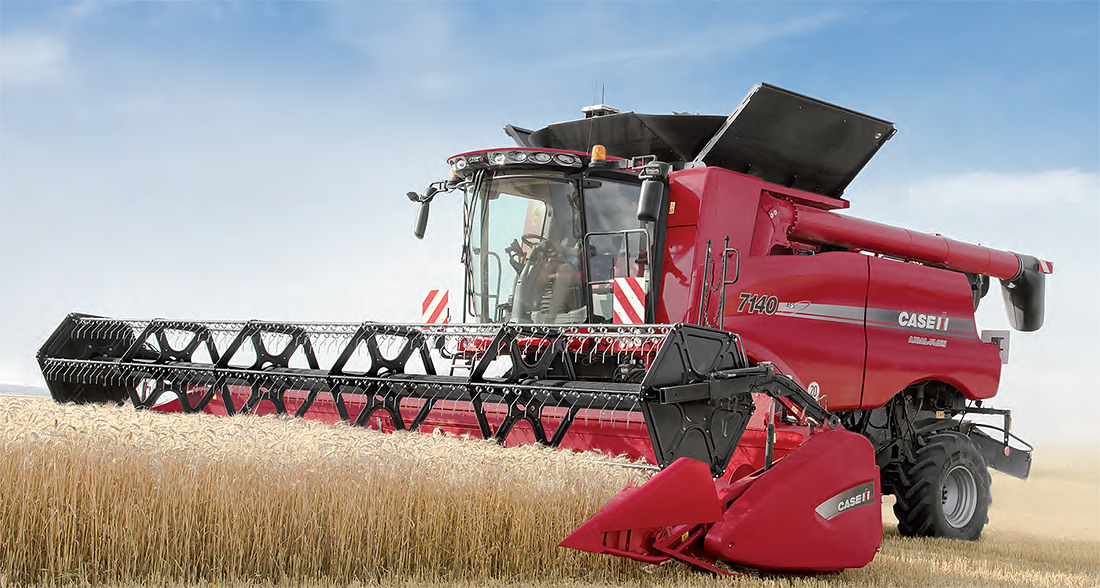

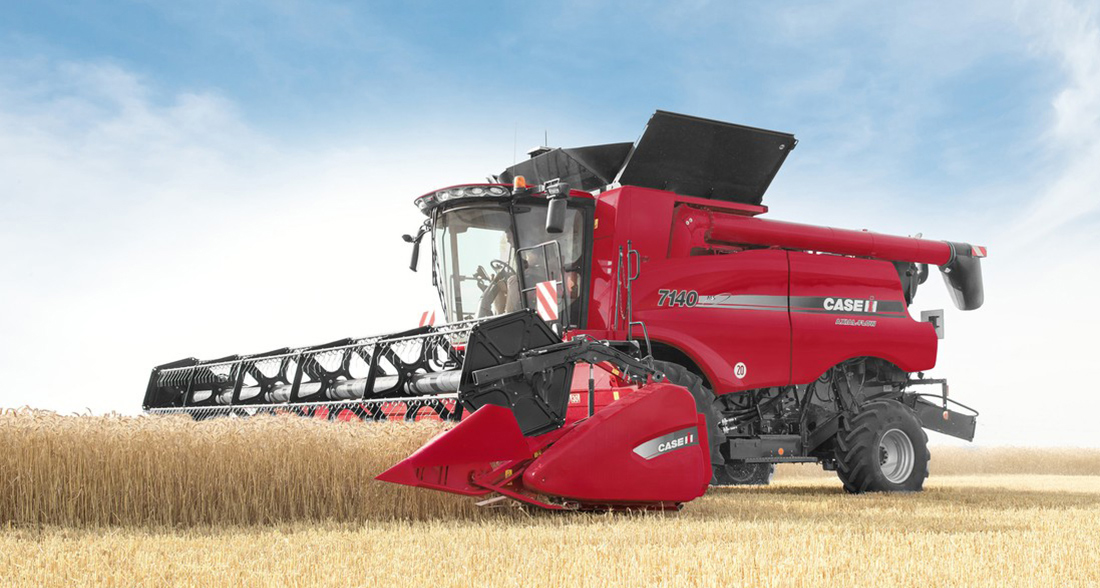

Case IH Axial Flow 7150™

Engine
Model: FPT Cursor 9 8.7L, TIER II
Capacity: 8.7 l
Rated power: 381 hp. (280 kW)
Maximum power: 449 hp. (330 kW)
Maximum torque:
Fuel system type: High Pressure Common Rail
Fuel tank capacity: 946 l

Running gear
Wheel configuration: Front wheel drive (2WD)
Transmission type: 2-speed hydrostatic drive with two speed ranges
Standard size of the wheels:
Front: Single, 800/65R32
Rear: Single, 600/65R28

Threshing and separation systems
Threshing and separation systems type: Single-rotor/sieve mills
Rotor: Drive from belt variator and 3-speed gear box
Diameter on the outer edge of the whips is 762 mm, diameter of the rotor tube is 649 mm
Rotor length is 2,794 mm
Rotor rotational speed is 250 to 1,150 rpm
Rotor cage: 3 threshing modules and 3 separation modules
Capture angle of threshing modules is 156.5°, and that of separation ones is 133°
Contaminants removal: Contaminants removal area is 5.13 m2
“Cross Flow” fan, 36 blades, 288.9 mm diameter
Unthreshed matter returns to the rotor
Type of non-grain portion processing system: Knife rotor installed transversely and counter-knives
Type of non-grain portion throwing system: Two vertical blade throwing devices with side deflectors

Grain loading and unloading systems
Capacity of the cleaned grains hopper: 10.57 m3
Unloading auger length: 6.6 m
Unloading auger capacity: 0.113 m3/s

Monitoring and navigation system

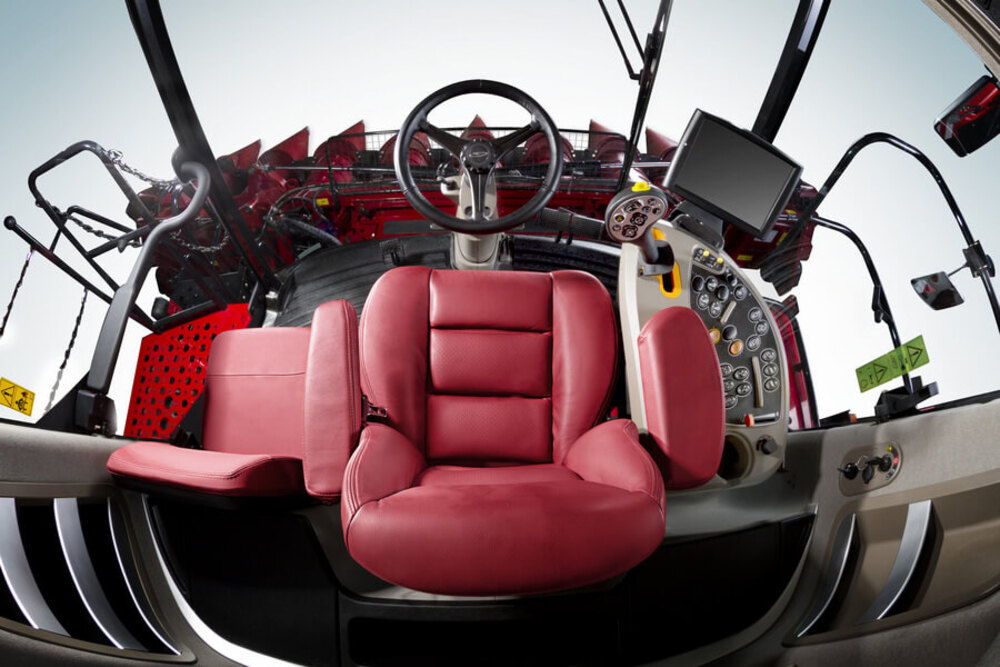

Monitoring: Colour touch screen of AFS Pro 700 (yield and humidity sensors optionally)
GPS navigation systems: Optional installation of autopilot, GPS navigation and mapping system is possible

Overall dimensions and weight
Length/width/height: 7.7/3.9/4.7 m
Weight (approximate): 17,050 kg
