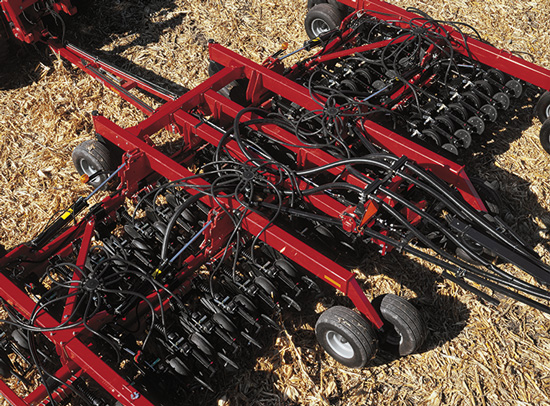

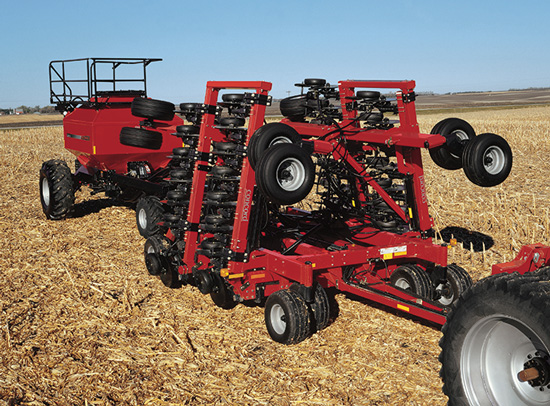

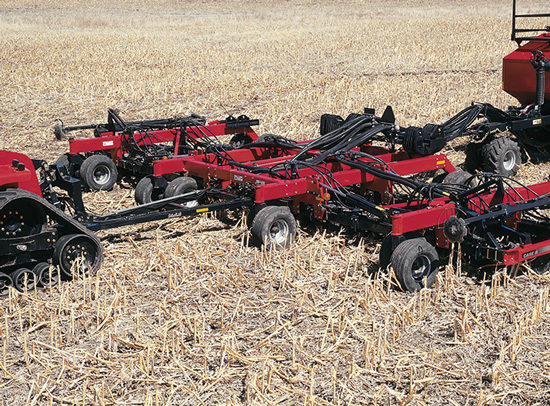

Case IH SDX 30/40 pneumatic sowing machine™

Strong frame and large construction weight with the possibility of using additional ballast provide a good ability to deepen during operation of the sowing machine at high speed.
Sowing is carried out by separate independent sowing sections and guarantees ideal copying of the soil relief and maintaining established depth of sowing across the entire width of the sowing machine.
Large diameter of the single-disc ploughshare promotes easy cutting of stubbles and high-quality formation of a sowing bed providing in this way optimum conditions for the seeds germination.
Each sowing section has an adjustable compression spring which provides a pressure of 113 to 230 kg.
This design allows you to adjust optimally the sowing machine to specific conditions as well as prevent damage to the section when hit by an obstacle.
Adjustment of the seeding depth is carried out separately on each section by means of a convenient lever.
The sowing section includes a height adjustable (up to 5  cm) and pressure adjustable (14 or 28 kg) powder wheel which closes the furrow and slightly compacts it.
The sowing machine is equipped with double support wheels on tandem supports that allows to support depth of seeding even better.
