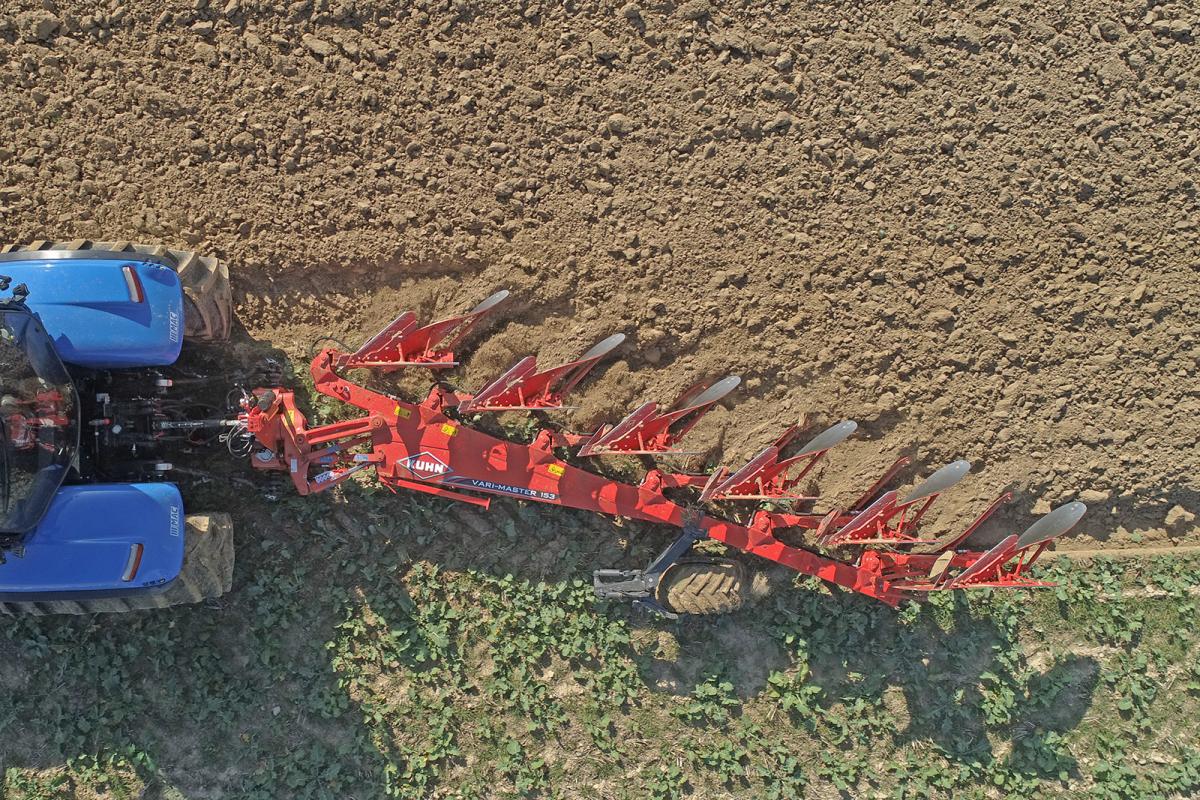

Mounted plows KUHN Multi-Master 153™

The best combination of adaptability, reliability and comfort of use

An expert in plowing, KUHN has developed the MASTER 153 line of 4 to 6 housings to meet the needs of farmers and contractors.
KUHN MASTER 153 plows are the best price and are appreciated by farmers all over the world as reference mounted plows.
The unique design of MASTER plows provides an exceptional level of productivity to achieve high yields and optimize financial results. Among other plows on the market they are distinguished by: ease of use and ease of adjustment to increase productivity and comfort; reliability combined with structural strength and numerous KUHN exclusives; quality of work with full wrapping of crop residues and weeds.
Thanks to the original KUHN forged parts, you extend the range of possibilities of your plow and ensure precision work without loss of productivity.
KUHN's reputation, knowledge and experience in the world of plowing guarantees that the value of your plow in case of resale will be higher than that of plows from other manufacturers.

KUHN MASTER 153 mounted plows have a common goal: to help you get a quick return on your investment.
MASTER 153 with a beam of 150 x 150 mm is designed for more intensive use and more difficult working conditions than MASTER 123. With MASTER 153 you can use tractors up to 270 hp. This line is available in versions 4 to 6, MULTI-MASTER and VARI-MASTER, with Safe-T rupture bolt protection or Hydro-Safe hydraulic protection.
Thousands of users have already chosen the MASTER 153 mounted reversible plow for its reliability, ease of use and quality of work. KUHN has been developing and manufacturing plows for over a century. This know-how and experience will increase the return on your investment due to the higher resale value than competing plows.

Benefits:

Two options for distances between housings

It is important to choose your plow according to the working conditions - in particular, to the system of cultivation that you follow. In order to better adapt to your working conditions, you can choose different distances between the housings. To do this, consider the following parameters:
large or small is the amount of residues
whether the straw is removed from the field
which is pre-treatment of vegetation cover. On MASTER 153 mounted plows 2 distances between cases are available:
4 and 5 furrows - 102 cm: this distance is recommended for the destruction of living vegetation or for wrapping the bed of pre-shredded remains. In this configuration, the soil flow easily circulates between the two housings while maintaining the optimal position of the plowshares. High quality plowing is maintained, despite the significant amount of residues.
5 and 6 furrows - 96 cm: This is the best compromise to maximize throughput in the presence of a significant amount of residue while maintaining working comfort with a maneuverable plow.

Two working width systems

KUHN offers two cutting width systems: multiple or variable.
MULTI-MASTER 153 plows allow you to work in different widths: 35, 40 and 45 cm (14, 16 or 18 inches). Changing the width is done by mechanical adjustment - simply by changing the bolts on the rods.
Multiple widths are ideal for farmers working in constant conditions with homogeneous soil, uniform plots and relatively flat plots with uniform volumes of crop residues.
VARI-MASTER 153 plows allow you to instantly adjust the cutting width to the working conditions. Changing the cutting width is carried out by hydraulic adjustment from the operator's workplace. A feature of the KUHN VARI-MASTER 153 mounted plows is the full integration of the variable width system into the frame design for optimal mechanism protection. Cutting width can vary from 30 to 50 cm (12-20 inches) depending on the distance between the bodies of your plow. VARI-MASTER 153 plows are ideal for contractors and farmers working in changing conditions: available traction power, uneven ground surface, lack adhesion, desired plowing profile, amount of residue to be wrapped, field shape,

Simple and accessible settings without tools

Plow settings are crucial to achieve the highest quality work. They must be accurately adjusted in case of any changes in working conditions. KUHN provides you with perfect plow adjustment thanks to simple, intuitive tool-free settings. Simplicity and accuracy of MASTER 153 plows allow to optimize fuel consumption and wear of working details.
In just a few seconds you will be able to use fine and precise settings that will ensure you impeccable quality of work and increased productivity. Adjusting vertical, offset or depth are all practical and easy.
To increase comfort, all plow settings (offset, vertical, working depth, NSH protection pressure) can be carried out from the cab with the help of hydraulics. In uneven working conditions, the operator can adjust the various parameters of the plow on the go, without interrupting plowing.
