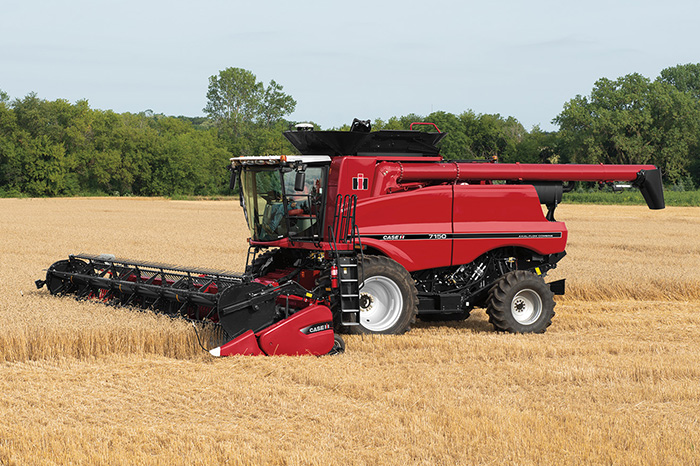

CASE IH presents renewed line of Axial-Flow 150 combines

The new CASE IH Axial-Flow 150 series agricultural combines allow you to achieve maximum productivity even at the highest yields.

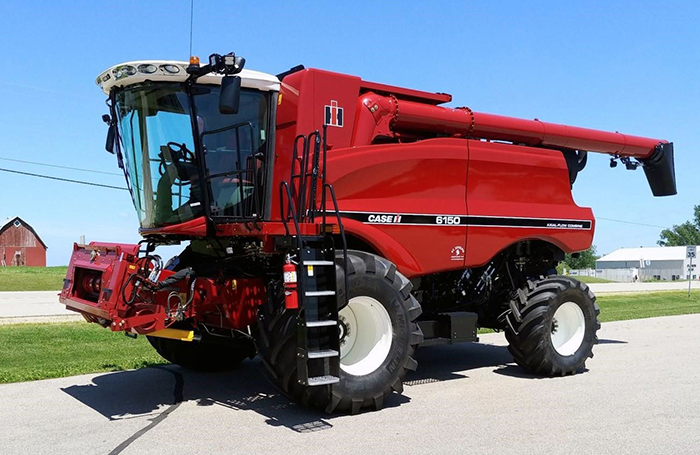

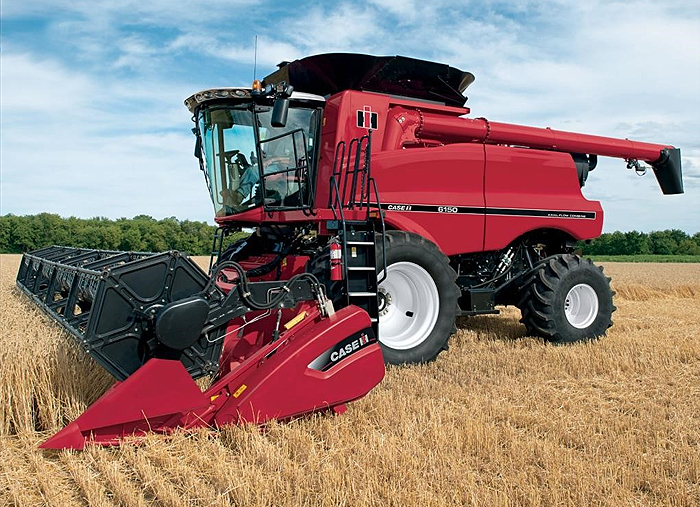

CASE IH Axial-Flow 6150 combines equipped with engines with a maximum power of 409 hp. are focused on the maximum versatility and flexibility in harvesting any crops. All the technological solutions implemented in these machines are aimed at achieving high reliability while maintaining unsurpassed quality of threshing and contaminants removal. Taking into account importance of harvesting speed under unpredictable weather conditions, CASE IH Axial-Flow 150 series combines are equipped with an optional system to increase engine power at unloading, allowing the hopper to be unloaded faster.

The transmission of the updated combines differs in simpler control, while having a wider range of available speeds. Electronically controlled differential lock with hydraulic drive provides new machines with unsurpassed field performance.

During harvesting, it is possible to smoothly switch between lower and higher transmission rows due to the use of special electric motors in the gearbox. Together with increased engine power and wider wheels, this ensures confident operation to the combine under the most adverse field conditions. For driving on roads, a second gear is used, which reduces fuel consumption and increases the travel speed of the combine.

The patented single-rotor design has been a key feature of Axial Flow combines for many years; at that CASE IH engineers constantly make improvements to this solution. The AFX rotor has the function of changing configurations: depending on the crop and threshing conditions, direct whips, whips with teeth or spiral agitators can be used. And for even more efficient adaptation and less grain loss, adjustable lid guide vanes are used.

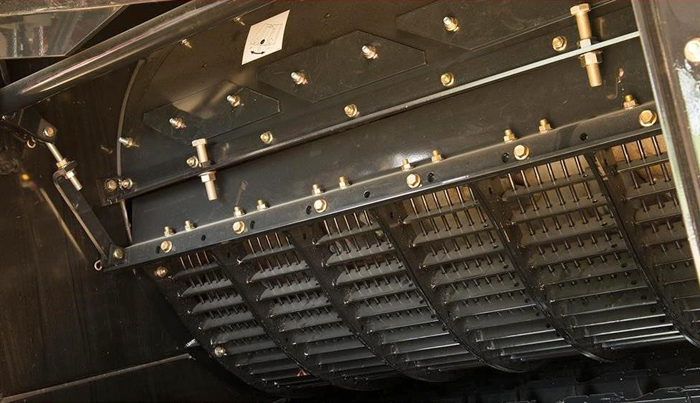

In the new CASE IH Axial Flow 150 combines, throughput is further enhanced by optimizing the concave angle of the space under the drum. All CASE IH combines are equipped with 762 mm rotor and the angle of rotation of the rotor module on the Axial Flow 150 series machines is 156 degrees which is the best performance in the class.

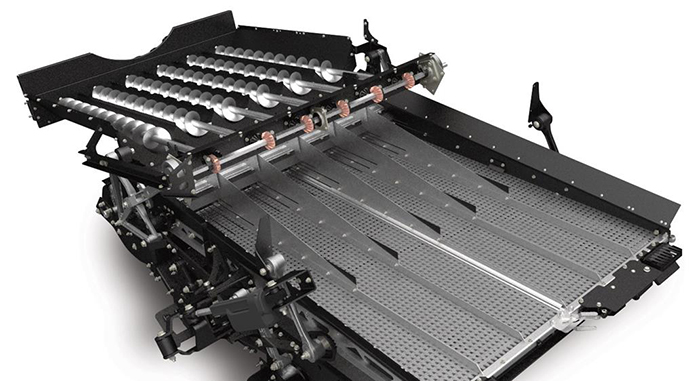

Cross Flow fan drive system with a belt variator allows the latter to develop up to 1300 rpm, creating the most dense air flow for the best removal of contaminants from grains. The area of the treatment sieves equal to 5.5 m2 is the largest in its segment (for combines of the classes V to VII), which increases productivity of the updated combines of the 150 series with the Cross Flow system by 20 %.

In the difficult conditions of 2020, the agricultural sector will require maximum productivity. Reliable and efficient agricultural machinery manufactured by CASE IH is the best suited for the achievement of the highest results. The new CASE IH Axial-Flow 150 series universal combines are capable of providing the highest harvesting performance and exceptional grains quality.

Thanks to the improved transmission and chassis, these mid class machines can confidently manoeuvre across any fields allowing the farmer to be less dependent on weather conditions.
